Igniter Testers

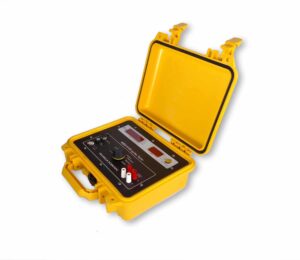

Model 4314 Series Ultra-Safe, Digital Igniter Testers

Valhalla Scientific’s Model 4314 ultra-safe portable igniter testers feature protective fail-proof technology, enabling engineers and technicians to safely perform diagnostic tests, repairs, and calibrations on explosive circuits and devices. The portable, battery-powered 4314 Series delivers accurate, high-resolution resistance measurement over multiple ranges in any environment.  The 4314 series can be custom configured for whatever application or industry you work in, whether aerospace, defense, transportation, energy, telecommunications, manufacturing, ballistics, and more.


  • Ultra-Safe Resistance Measurements
  • Ultra Fail Safe Circuitry Limits Current
  • No Hassle Test Current Monitoring
  • Real Time Fail-Safe test
  • Wide Range 2 Ohms – 2M Ohms
  • Dust and Water Resistant
  • Rugged Compact Design
  • Safe Tester for Explosive Devices
  • Safety Approval by US Government/Military
  • Ultra-Safe Resistance Measurements
  • Ultra Fail Safe Circuitry Limits Current
  • Wide Range 2 Ohms – 2M Ohms
  • Dust and Water Resistant
  • Rugged Compact Design
  • Safe Tester for Explosive Devices
  • Safety Approval by US Government/Military
  • Ultra-Safe Resistance Measurements
  • Ultra Fail Safe Circuitry Limits Current
  • 100 micro-ohm resolution to 200M ohms – 9 Ranges
  • Rechargeable Battery Operated
  • Safe Tester for Explosive Devices
  • Safety Approval by US Government/Military
  • Reduced Test and Fail-Safe Current
  • Ultra-Safe Resistance Measurements
  • Ultra Fail Safe Circuitry Limits Current
  • 100 micro-ohm Resolution to 2M ohms- 7 Ranges
  • Rechargeable Battery Operated
  • Safe Tester for Explosive Devices
  • Safety Approval by US Government/Military
  • Certificate of N.I.S.T. traceability included at no extra charge
  • Ultra Safe- Ultra Fail Safe
  • Battery Powered Igniter Tester
  • US Air Force Approved
  • 4314AF Cannot Measure/Recharge Simultaneously
  • 1milliohm Resolution to 20,000 Ohms
  • Fail-Safe Current Limited
  • Mil-Spec Front Panel Connector
  • Ultra-Safe Resistance Measurements
  • Ultra Fail Safe Circuitry Limits Current
  • 2 Ohm Range for Low Resistance Applications
  • Rechargeable Battery Operated
  • Safe Tester for Explosive Devices
  • Safety Approval by US Government/Military

Common Configurations of the Alpha 4314 and 4314 KRC Series

The Alpha 4314 and the 4314 KRC Series Igniter Testers can be customized for a wide range of application. Below is a list of the most common configurations of the series. Click here to download a selection guide.



Part #: Alpha4314-1234STD

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 10mA | 16mA
  • 200Ohms | 1mA | 1.8mA
  • 2kOhms | 100uA | 180uA
  • 20kOhms | 10uA | 18uA

Part #: Alpha4314-1267STD

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 10mA | 16mA
  • 200Ohms | 1mA | 1.8mA
  • 2MOhms | 100nA | 180nA
  • 20MOhms | 10nA | 18nA

Part #: Alpha4314-1356STD

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 10mA | 16mA
  • 2kOhms | 100uA | 180uA
  • 200kOhms | 1uA | 1.8uA
  • 2MOhms | 100nA | 180nA


Part #: Alpha4314-234STD

Ranges | Test Current | Fail Safe Current

  • 200Ohms | 1mA | 1.8mA
  • 2kOhms | 100uA | 180uA
  • 20kOhms | 10uA | 18uA
  • Limits Max Current to 1mA (3 range only)

Part #: Alpha4314-1257STD

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 10mA | 16mA
  • 200Ohms | 1mA | 1.8mA
  • 200kOhms | 1uA | 1.8uA
  • 20MOhms | 10nA | 18nA

Part #: Alpha4314-1457STD

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 10mA | 16mA
  • 20kOhms | 10uA | 18uA
  • 200kOhms | 1uA | 1.8uA
  • 20MOhms | 10nA | 18nA


Part #: Alpha4314-2356STD

Ranges | Test Current | Fail Safe Current

  • 200Ohms | 1mA | 1.8mA
  • 2kOhms | 100uA | 180uA
  • 200kOhms | 1uA | 1.8uA
  • 2MOhms | 100nA | 180nA

Part #: Alpha4314-1247STD

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 10mA | 16mA
  • 200Ohms | 1mA | 1.8mA
  • 20kOhms | 10uA | 18uA
  • 20MOhms | 10nA | 18nA

Part #: Alpha4314-3456STD

Ranges | Test Current | Fail Safe Current

  • 2kOhms | 100uA | 180uA
  • 20kOhms | 10uA | 18uA
  • 200kOhms | 1uA | 1.8uA
  • 2MOhms | 100nA | 180nA


Part #: Alpha4314-0125STD

Ranges | Test Current | Fail Safe Current

  • 2Ohms | 10mA | 16mA
  • 20Ohms | 10mA | 16mA
  • 200Ohms | 1mA | 1.8mA
  • 200kOhms | 1uA | 1.8uA

Part #: Alpha4314-2367STD

Ranges | Test Current | Fail Safe Current

  • 200Ohms | 1mA | 1.8mA
  • 2kOhms | 100uA | 180uA
  • 2MOhms | 100nA | 180nA
  • 20MOhms | 10nA | 18nA

Part #: Alpha4314-1357STD

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 10mA | 16mA
  • 2kOhms | 100uA | 180uA
  • 200kOhms | 1uA | 1.8uA
  • 20MOhms | 10nA | 18nA


Part #: Alpha4314-1234KRC

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 5mA | 8mA
  • 200Ohms | 500uA | 1.8mA
  • 2kOhms | 50uA | 180uA
  • 20kOhms | 5uA | 18uA
  • Fuse Holder and Charger Jack on Front Panel

Part #: Alpha4314-1235KRC

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 5mA | 8mA
  • 200Ohms | 500uA | 1.8mA
  • 2kOhms | 50uA | 180uA
  • 200kOhms | 500nA | 1.8uA

Part #: Alpha4314-1234KRC

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 5mA | 8mA
  • 200Ohms | 500uA | 1.8mA
  • 2kOhms | 50uA | 180uA
  • 20kOhms | 5uA | 18uA


Part #: Alpha4314-0356KRC

Ranges | Test Current | Fail Safe Current

  • 2Ohms | 5mA | 8mA
  • 2kOhms | 50uA | 180uA
  • 200kOhms | 500nA | 1.8uA
  • 2MOhms | 50uA | 180uA

Part #: Alpha4314-3456KRC

Ranges | Test Current | Fail Safe Current

  • 2kOhms | 50uA | 180uA
  • 20kOhms | 5uA | 18uA
  • 200kOhms | 500nA | 1.8uA
  • 2MOhms | 50uA | 180uA

Part #: Alpha4314-0125KRC

Ranges | Test Current | Fail Safe Current

  • 2Ohms | 5mA | 8mA
  • 20Ohms | 5mA | 8mA
  • 200Ohms | 500uA | 1.8mA
  • 200kOhms | 500nA | 1.8uA


Part #: Alpha4314-0126KRC

Ranges | Test Current | Fail Safe Current

  • 2Ohms | 5mA | 8mA
  • 20Ohms | 5mA | 8mA
  • 200Ohms | 500uA | 1.8mA
  • 2MOhms | 50uA | 180uA

Part #: Alpha4314-1356KRC

Ranges | Test Current | Fail Safe Current

  • 20Ohms | 5mA | 8mA
  • 2kOhms | 50uA | 180uA
  • 200kOhms | 500nA | 1.8uA
  • 2MOhms | 50uA | 180uA

Part #: Alpha4314-0123KRC

Ranges | Test Current | Fail Safe Current

  • 2Ohms | 5mA | 8mA
  • 20Ohms | 5mA | 8mA
  • 200Ohms | 500uA | 1.8mA
  • 2kOhms | 50uA | 180uA


Other Unique Configurations

Part #: Alpha4314-#STD

Single Range unit

Choose 1 of the 9 Available ranges

Part #: Alpha4314-#KRC

Single Range unit with reduced current

Choose 1 of the 8 available ranges
