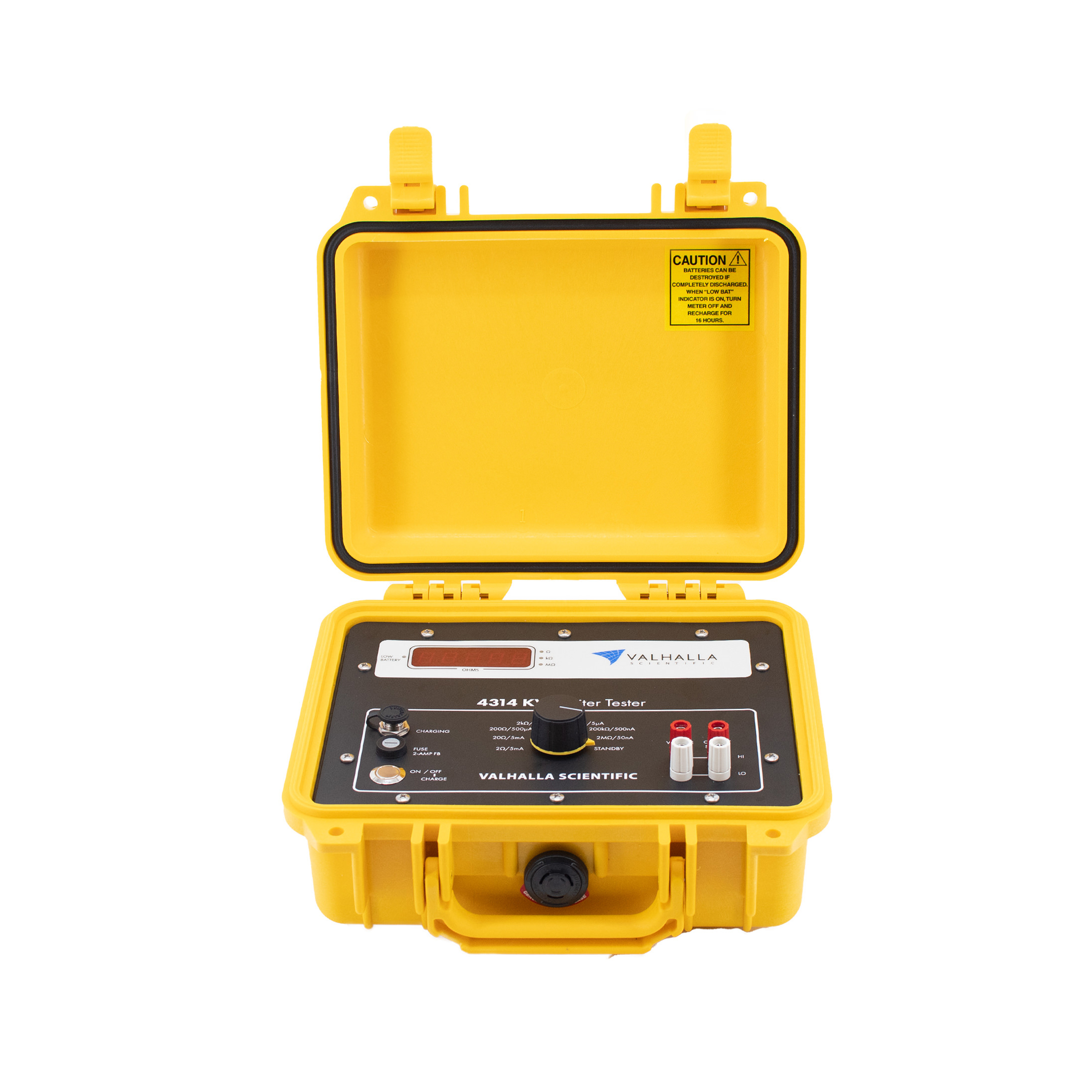

4314 KV Rugged Igniter Tester
$5,245.00
Model 4314 KV is a 4-wire ohmmeter designed to use low test currents for its measurement. Additional circuitry proprietary to Valhalla Scientific is used to ensure that test current levels do not exceed the specified “fail-safe current” even in a worst-case component failure situation.
- Inherently-Safe Circuitry
- No Hassle Test Current Monitoring
- Real-time Fail-Safe check
- Wide Range 2 Ohms – 2M Ohms
- Rugged Compact Design: Dust & Water Resistant
- Rechargeable Battery Operated
- Certified Mil Std. 810 – Method 511 Safe for Explosive & Volatile Atmospheres
- Complies to (EWR) 127-1, Section 3.13.8.1-2
- Safety Approval by US Government/Military
- Certificate of N.I.S.T. traceability included at no extra charge
RANGE SPECIFICATIONS
| Rng # | Range | Resolution | Test Current | Failsafe Current | Accuracy |
| 1 | 2Ω | 100µΩ | 5mA | 8mA | ± 0.03% of reading ± 0.02% of range |
| 2 | 20Ω | 1mΩ | 5mA | 8mA | ± 0.03% of reading ± 0.02% of range |
| 3 | 200Ω | 10mΩ | 500μA | 1.8mA | ± 0.03% of reading ± 0.02% of range |
| 4 | 2kΩ | 100mΩ | 50μA | 180μA | ± 0.03% of reading ± 0.02% of range |
| 5 | 20kΩ | 1Ω | 5μA | 18μA | ± 0.03% of reading ± 0.02% of range |
| 6 | 200kΩ | 10Ω | 500nA | 1.8μA | ± 0.05% of reading ± 0.05% of range |
| 7 | 2MΩ | 100Ω | 50nA | 180nA | ± 1% of reading ± 0.2% of range |
| 8 | STDBY | – | – | – | – |
| Display Type | 4 1/2 digit (19999) L.E.D. – 20,000 counts |
| Overload Indication | O.L. |
| Conversion Rate | 3 Readings/Second |
| Terminal Configuration | 4-Wire Kelvin |
| Power | Rechargeable NiMH (10Ah) batteries & charger (100-240 VAC 50-60 Hz) |
| Size | 27cm/11″ D x 9.68cm/24.6″ W x 12.4cm/4.87″ H |
| Weight | 2.7kg / 6lbs NET | 3.2kg / 7lbs shipping |
Maximize Your Instrument’s Performance with Certified-Compatible Cables, Leads, Connectors, & More
-
Power Supply 110-240VAC to 6VDC @ 1.25A
$115.00 -
K 4-Wire Kelvin Lead Set
$305.00 -
KCS Gold-Plated Kelvin Clips (2 Per Set)
$180.00 -
KK 4-Wire Kelvin Lead Set
$425.00 -
Jaws Heavy Duty Kelvin Clip Set
$180.00 -
K-Gray Shielded 4-Wire Kelvin Lead Set
$365.00 -
KL Heavy Duty 6-ft Kelvin Lead Set (Spade Lug to Jaws)
$425.00 -
MPS Single Pointed Probe Set
$425.00 -
MP1 4-wire Kelvin Micro-Probes (0.05” Spacing)
$425.00 -
MP2 4-wire Kelvin Mini-Probes (0.18” Spacing)
$425.00 -
MP4 4-wire surface probe (1” dia.)
$425.00 -
MP5 4-wire surface probe (0.5” dia.)
$425.00 -
Dual Banana to Dual Banana Lead Set
$305.00 -
K-174
$290.00 -
HDP Heavy Duty Battery Pack
$305.00
Rugged Design with Safety in Mind
The Valhalla Scientific Model 4314 KV Digital Igniter Tester is designed to provide extremely safe and reliable resistance testing of explosive or volatile devices. Some of the proven uses include: fuses, squibs, igniters, explosive bolts, automobile airbag initiators and many others.
Essentially, a Model 4314 KV is a 4-wire ohmmeter which has been designed to use very low test currents for its measurement. Additional circuitry proprietary to Valhalla Scientific is used to ensure that test current levels do not exceed the specified “failsafe current” even in a worst-case component failure situation. The failsafe feature is tested in every instrument before shipment and the results provided to the customer on a Certificate of Calibration that accompanies the unit. In addition, to prove that this level of safety is intact, the 4314 KV is equipped with a constant test current monitoring display and a unique Fail-Safe test button that simulates a worst case component failure and displays the “real” fail-safe current, all while the output is isolated from the current source.
Measures Under all Conditions
The 4314 KV are not only the safest resistance testers for explosive devices, they are also, thanks to its case, impact resistant and water tight. The devices float in water, are water proof when closed to a depth of 3 feet, and can be operated outside in direct rain.
They comes self-contained with a slim-line AC/DC Battery Charger and measurement test leads ready to use.
The 4314 KV utilizes a four-wire Kelvin input configuration to eliminate lead wire length and lead contact resistance errors. The units are battery powered with a heavy duty rechargeable NiMH (10Ah) pack for portability and line isolation purposes. For added convenience and safety, the 4314 KV feature an internal switching configuration which automatically disables the battery charging circuit when in the operate mode. Alternately, all power is removed from the output circuitry when in the off/charging mode.
As with all Valhalla Digital Ohmmeters and Igniter Testers, the 4314 KV is available with a host of 4-wire probes and cable sets. Check the side column for complete list of Options and Accessories.
Certificate of Calibration Included
An NIST-traceable Z540.3 certificate of calibration is included with every instrument order. Furthermore, enhanced ISO/IEC 17025 certification is available.
